รายละเอียดสินค้า:
|
| วัสดุ: | 0.5 มม., 0.6 มม., 0.8 มม., ลวดเหล็ก 0.9 มม., แข็งแรง | ความหนาของลวด: | 0.5 - 0.8 มม. |
|---|---|---|---|
| ชื่อแบรนด์: | HEBEI KN | เวลาการส่งมอบ: | 7 วันต่อ 40 ฟุตคอนเทนเนอร์ |
| การบํารุงผิว: | การป้องกันน้ำมัน, กระดาษป้องกันน้ำ, ฟิล์มหด | ชื่อสินค้า: | สายใยที่มองเห็นได้ต่ํา สายใยที่มองไม่เห็น MZP, MPP |
| ขนาด: | 10x10x1.1-1.4 หรือ 10x5x1.1-1.4m | ประเภท: | กรังด์อีก |
| ปริมาณการสั่งซื้อขั้นต่ำ: | 100 ชุด | คําสําคัญ: | สายใยคล้องด้ายความเห็นต่ํา MZP, MPP |
| ตัวอย่าง: | มี | แพ็คเกจ: | การป้องกันน้ำมันฟิล์มหด |
| น้ําหนัก: | 26-30kgs | ||
| เน้น: | Customizable Low Visibility Obstacle Fence,Putanka Obstacle Fence,Aiti Tank Wire Mesh Invisible Barrier |
||
Inconspicuous wire network - MZP Inconspicuous obstacle (inconspicuous wire net, MZP, MZP putanka, putanka) - a three-dimensional barrier made of carbon wire rings. The wire is very thin, making it nearly invisible. This product serves as an engineering non-explosive containment barrier.
The MZP barrier prevents approach to protected objects. Individuals become entangled in the rings and typically cannot escape without assistance. The barrier also effectively stops wheeled and tracked vehicles by winding around wheels or tracks.
| Attribute | Value |
|---|---|
| Material | 0.5mm, 0.6mm, 0.8mm, 0.9mm Steel Wire, Strong |
| Wire Thickness | 0.5 - 0.8 mm |
| Brand Name | HEBEI KN |
| Delivery Time | 7 days per 40ft Container |
| Surface Treatment | Oil Protection, Water proof paper, Shrink Film |
| Product Name | Low Visible Wire, Invisible Wire Mesh, MZP, MPP |
| SIZE | 10x10x1.1-1.4 or 10x5x1.1-1.4m |
| Type | More Grands |
| MOQ | 100 SET |
| Key Words | low-visibility wire mesh, MZP, MPP |
| Sample | Available |
| Package | oil protection, shrink film |
| Weight | 26-30kgs |
| Open Size (M) | Weight (KG) |
|---|---|
| 10 x 10 x 1.1-1.4 | 30 -30.5 kg |
| 10 x 10 x 1.1-1.4 | 26.5 - 27 kg |
| 10 x 5 x 1.1-1.4 | 24.5 - 25 kg |
Weight of the set: Up to 30 KG
Folded dimensions: Length 1200mm, Width 600mm, Height 120mm
Expanded dimensions: Area 10x10m, Height: 1.1 - 1.4m
Wire diameter: 0.5 - 0.9mm

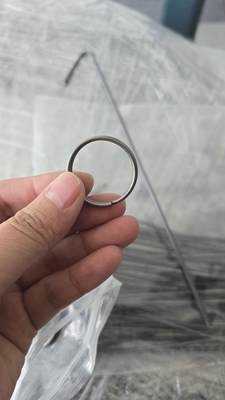

Set includes: 40 steel rings, 40 steel pegs
Warranty: 3 years

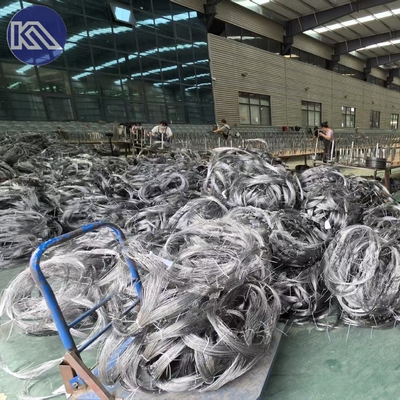

Our No.1 workshop features approximately 100 production platforms, capable of producing around 500 sets per day.
When encountering the barrier, individuals become entangled and typically cannot escape without assistance. For vehicles, the wire wraps around wheels/tracks, creating a metal pile on the chassis that prevents movement and is difficult to remove.
| Parameter | Specification |
|---|---|
| Unfolded dimensions | 10x10x1.1-1.4 m |
| Wire diameter / number of garlands | 0.9 mm / 20 pieces 0.8 mm / 20 pieces 0.6 mm / 20 pieces 0.5 mm / 20 pieces twist - 0.8 mm |
| Folded dimensions | 1.2x0.6x0.8 m |
| Package weight without rings and peg | 29 kg |
| Complete set | 40 rings + 40 pegs |
Step 1: Place the coil at the desired installation location. Note: After deployment, the MZP cannot be reassembled into its original coil.
Step 2: Divide the bay into two parts and lay them out in opposite directions (no cutting required).
Step 3: Stretch two rows of the bay to their full length.
Step 4: Lay each row outwards to create four rows from the initial two.
Step 5: Fix the coil with nails, securing the thick coil first. This creates thick lines at the bottom with thin lines extending upward.
| Year Founded | 2018 |
| Export Experience to Ukraine | Yes (Egoza, Putanka products) |
| Employees | 820 |
| Daily Output (MZP/Putanka) | ~800 units |
| Monthly Export Capacity | 4-8 containers |
| Company Type | Manufacturer with export capability |
| Annual Revenue | CNY71,550,000 |
| Export Ports | Qingdao, Tianjin, Ningbo etc. |
| Key Personnel Experience | 7 years (Cora) |
