| Product Name: | Earth-filled Defensive Barriers Military Engineering Base Defense Walls | Key Word: | earth filled defensive barriers |
|---|---|---|---|
| Mesh Diameter: | 5.0mm, 4.0 mm | Hesco Feature: | Easily Assembled |
| Surface Treatment: | Galvanized | Mesh Hole: | 3*3'(7.62*7.62cm), 75mmx75mm |
| Type: | Welded wire mesh Defensive Barrier | Specification: | CE, BV, SGS |
| Usage: | Defensive | Shape: | Square |
| Wire Diameter: | 3.0-6.0mm | Material: | Steel |
| เน้น: | Galvanized Steel Defensive Barriers,Earth Filled Defensive Barriers,Military Grade Defensive Barriers |
||

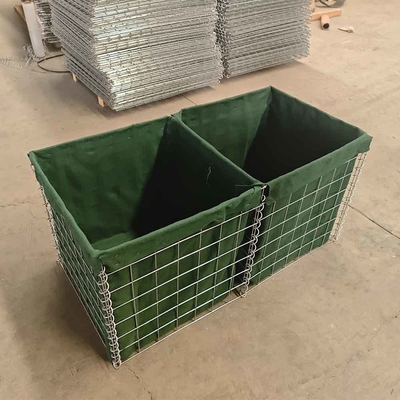

| Product Name | Earth-filled Defensive Barriers Military Engineering Base Defense Walls |
|---|---|
| Key Word | earth filled defensive barriers |
| Mesh Diameter | 5.0mm, 4.0 mm |
| Hesco Feature | Easily Assembled |
| Surface Treatment | Galvanized |
| Mesh Hole | 3*3'(7.62*7.62cm), 75mmx75mm |
| Type | Welded wire mesh Defensive Barrier |
| Specification | CE, BV, SGS |
| Usage | Defensive |
| Shape | Square |
| Wire Diameter | 3.0-6.0mm |
| Material | Steel |
| Model | Height | Width | Length | Internal Cells |
|---|---|---|---|---|
| SX-1 | 54"(1.37m) | 42"(1.06m) | 32'9"(10m) | 5+4=9 cells |
| SX-2 | 24"(0.61m) | 24"(0.61m) | 4'(1.22m) | 2 cells |
| SX-3 | 39"(1.0m) | 39"(1.0m) | 32'9"(10m) | 5+5=10 cells |
| SX-4 | 39"(1.0m) | 60"(1.52m) | 32'9"(10m) | 5+5=10 cells |
| SX-5 | 24"(0.61m) | 24"(0.61m) | 10'(3.05m) | 5 cells |
| SX-6 | 66"(1.68m) | 24"(0.61m) | 10'(3.05m) | 5 cells |
| SX-7 | 87"(2.21m) | 84"(2.13m) | 91'(27.74m) | 5+4+4=13 cells |
| SX-8 | 54"(1.37m) | 48"(1.22m) | 32'9"(10m) | 5+4=9 cells |
| SX-9 | 39"(1.0m) | 30"(0.76m) | 30'(9.14m) | 6+6=12 cells |
| SX-10 | 87"(2.21m) | 60"(1.52m) | 100'(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48"(1.22m) | 12"(0.30m) | 4'(1.22m) | 2 cells |
| SX-12 | 84"(2.13m) | 42"(1.06m) | 108'(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108"(2.74m) | 42"(1.06m) | 10'5"(3.18m) | 6 cells |
