| Material: | Carbon steel Wire | Mesh Wire: | 4.0 mm 5.0mm |
|---|---|---|---|
| Spring Wire: | 4.0 mm | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 250-300gsm Sand Color,Green Color | life duration: | ≥ 25 years |
| warranty: | ≥ 3 years | ||
| เน้น: | Hot Dipped Galvanized Hesco Barrier,Flood Control Hesco Barrier,Military Defense Hesco Barrier |
||

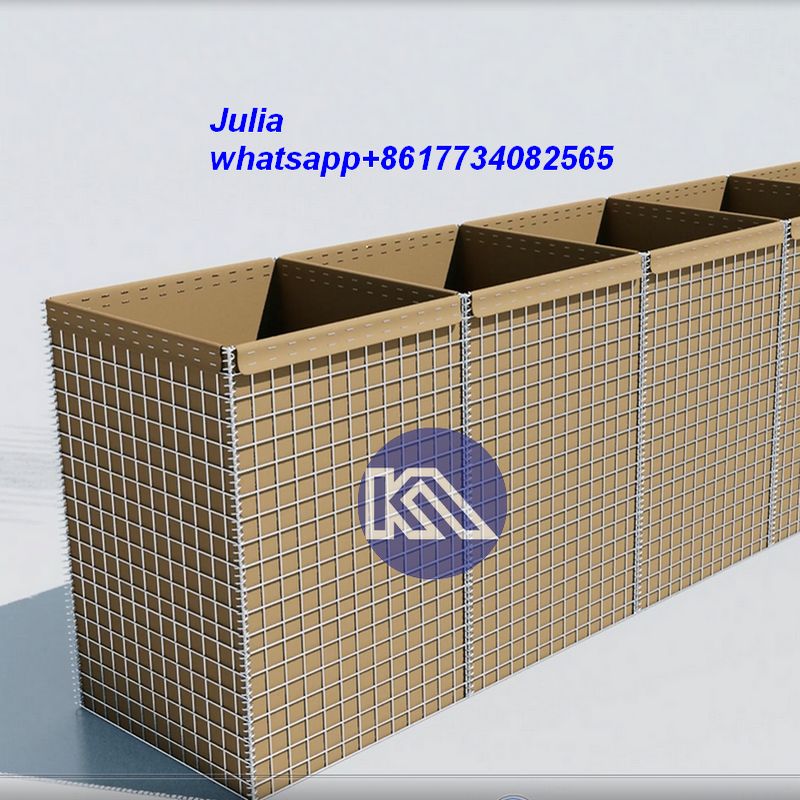

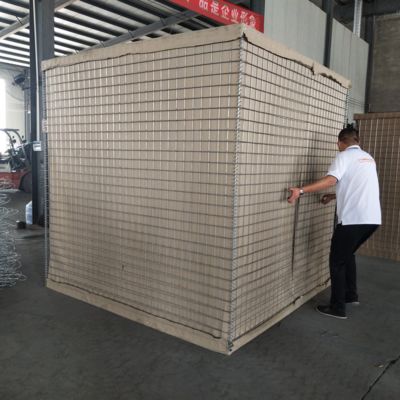

Hot Dipped Galvanized Hesco Barrier With Non-Woven Geotextile For Flood Control And Military Fortifications
Prefabricated Design:
The Hesco barrier castle is manufactured in a prefabricated form, meaningit is pre-assembled and ready for deployment.
This feature allows for quick installation andreduces the need for extensive on-site construction.
The pre-made cellscan be easily transported and joined together as needed.
Hesco Barriers Introduction :
The HESCO barrier castles were initially invented by British entrepreneur Jimi Heselden, a former miner, in the 1980s. In 1989, he established HESCO Bastion to promote and sell his patented product.
The HESCO barrier castles were originally designed for the rapid construction of flood barriers. For instance, during Hurricane Katrina and Hurricane Rita in New Orleans in 2005, a large number of HESCO barrier castles were used to resist the flooding from heavy rains. Similarly, in June 2008, during the floods in the American Midwest, an 8,200-meter-long barrier was constructed using HESCO barrier castles. In March 2009, a 10,700-meter-long HESCO flood barrier was constructed in Fargo, North Dakota.
( mesh gabion box ) are good Solution for emergency flood control,shelter house,military defence wall.
Army Defensive Hesco Barrier is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
Finish:hot dipped galvanized,galfan coated
Hesco Barriers Specification :
1) wire diameter: 4mm-5mm
2) hole: 3''x3'',(76.2mm x 76.2mm)
3) hesco size: mil 1 - mil 19,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be green,beige sand color.
Army Defensive Hesco Barrier Specification List
| Model | Height | Width | Length | Internal Cells |
| KN-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| KN-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| KN-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| KN-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| KN-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| KN-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| KN-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| KN-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| KN-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| KN-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| KN-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Hesco Barriers Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
