รายละเอียดสินค้า:
การชำระเงิน:
|
| ส่วนประกอบ: | เกเบี้ยนรอยตาข่าย, สปริง, ขาร่วม, ผ้าใยสังเคราะห์ | การรักษาผิวหน้า: | ชุบสังกะสีแบบจุ่มร้อนหนัก |
|---|---|---|---|
| ขนาดตาข่าย: | 3" X 3" | ลวด: | 5.0มม |
| ระยะเวลาชีวิต: | ≥ 25 ปี | การรับประกัน: | ≥ 3 ปี |
| เน้น: | Military Barrier hot dipped galvanized steel,Military Barrier multi cellular design,Military Barrier easy installation |
||
Military Barrier Designed With Hot Dipped Galvanized Steel Wire Mesh And Multi Cellular Design For Easy Installation
Military Barriers :
Military Barriers units can be used for perimeter protection, border control and temporary accommodation bunkers.
The Military Barriers factory unit is a multi-cellular barrier system manufactured from welded Zinc-Aluminium
coated steel mesh or galvanized steel wire mesh and lined with heavy-duty non-woven polypropylene geotextile.
The unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier
to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional
strength and structural integrity.
Military Barriers:
Material :steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Size : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
The Military Barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').
Military Hesco Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| KN-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| KN-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| KN-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| KN-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| KN-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| KN-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| KN-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| KN-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| KN-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |

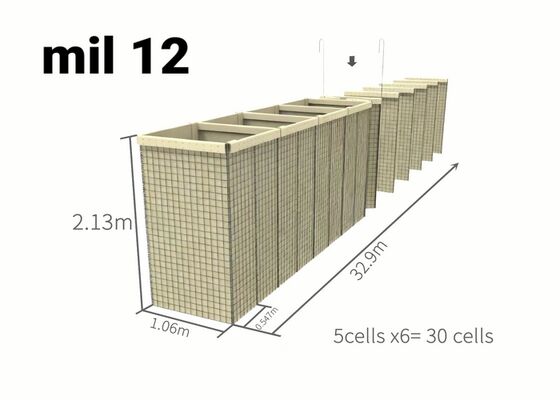

| KN-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| KN-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Barriers can be built to any required length and to any height. The unique joining system allows the user great flexibility in configurations and requirements. One of the key advantages of the system is that any readily available infill material can be utilised. Sand, rubble, rocks, soil, concrete and even snow have been successfully used.
Rapid construction is another key feature of the product. A typical wall of Military Barriers equivalent to approximately 1500 sandbags, can be erected and filled by two men and a single common loader in less than twenty minutes. An equivalent wall constructed of sandbags would take 10 men 7 hours to build.
Military Barriers Application:
