| ชื่อสินค้า: | ป้องกันการระเบิดของกรงป้องกันการระเบิดราคาการรักษาความปลอดภัย Eco Bastion Barrier Welded Gabion Box | คำสำคัญ: | ปราสาทป้องกัน |
|---|---|---|---|
| geotextile: | มาตรฐาน 300 ก./ตร.ม | เส้นผ่านศูนย์กลางตาข่าย: | เส้นผ่านศูนย์กลาง 5.0 มม |
| เครื่องประดับ: | ลวดเย็บ, ข้อต่อพิน | แอปพลิเคชัน: | การป้องกันทางทหาร |
| สี geotextile: | เบจ เขียว ขาว | ขนาดตาข่าย: | 76*76 มม./50*100 มม./100*100 มม |
| ขนาดสปริง: | 4.0/4.5มม | ||
| เน้น: | explosion proof gabion box,welded military barrier cage,security gabion box with warranty |
||

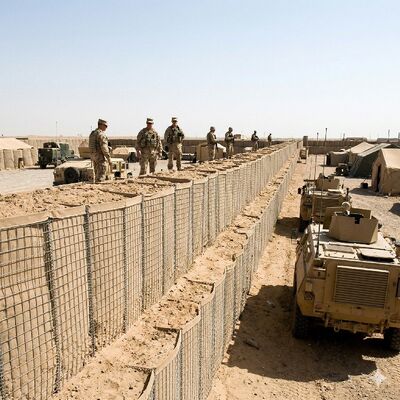

Defence Sand Explosion Proof Cage Price Security Eco Bastion Barrier Welded Gabion Box Explosion-Proof Cage
From a structural viewpoint, the defensive barrier consists of two main components: a collapsible galvanized steel wire mesh frame and a heavy-duty polypropylene geotextile liner. The mesh provides mechanical strength and shape retention, while the liner prevents fill material from leaking out. The sections are hinged together, allowing them to be folded flat for storage and then expanded like an accordion on site.
Installation requires only basic machinery such as a front-end loader or excavator. The empty barriers are delivered collapsed on pallets, which saves significant transport volume – one truck can carry enough sections to build over 300 meters of wall. After being unfolded and placed in position, each cell is filled with local soil, sand, or gravel. No special foundation or concrete is needed. A typical 1.5‑meter‑high barrier can be installed by a small team in a few hours.
The Standard Technical Specifications
| Military Barrier Used Shooting Range Barrier | |||
| Model | Height | Width | Length |
| mil-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| mil-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| mil-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| mil-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| mil-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| mil-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| mil-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| mil-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| mil-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| mil-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| mil-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| mil-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| mil-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
1.Environmental Barriers, Flood Barriers, a reliable, easy-to-deploy, and robust solution for emergency flood
protection or long-term wetland restoration
2.Defensive Barriers: Protecting both and civilian personnel in dangerous environments demands defensive
solutions that are secure, reliable, and readily available.
3.Protective Barriers: Protect your workforce, Create a secure refuge for your employees by protecting up to
eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer- facing perimeter security where a more benign appearance is required.
The Application for Welded Gabion Barrier Military Barrier
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
