รายละเอียดสินค้า:
การชำระเงิน:
|
| ชื่อสินค้า: | สิ่งกีดขวางที่เต็มไปด้วยทรายปรับใช้อย่างรวดเร็ว | กำแพงป้อมปราการที่ปลอดภัย | คำสำคัญ: | ปกป้อง ที่ เต็มไปด้วยทราย |
|---|---|---|---|
| ขนาดตาข่าย: | 3"x 3" หรือ 8 ซม. x 8 ซม | เซลล์ภายใน: | 5+4 = 9 เซลล์ |
| สี geotextile: | สีขาว, สีเบจหรือสีเขียวทหาร | ระยะเวลาชีวิต: | ≥ 25 ปี |
| ความหนาของลวด: | 5.0 มม. หรือ 4.0 มม | วัตถุดิบ: | ลวดเหล็กเหล็กคาร์บอนต่ำ |
| คุณสมบัติ: | ทนทาน แข็งแรง ประกอบง่าย | เครื่องประดับ: | สปริง, พินโจนิท, จีโอเท็กซ์ไทล์ |
| เน้น: | 1m safety barrier sand filled,defensive barrier sand wall,sand filled barrier with warranty |
||

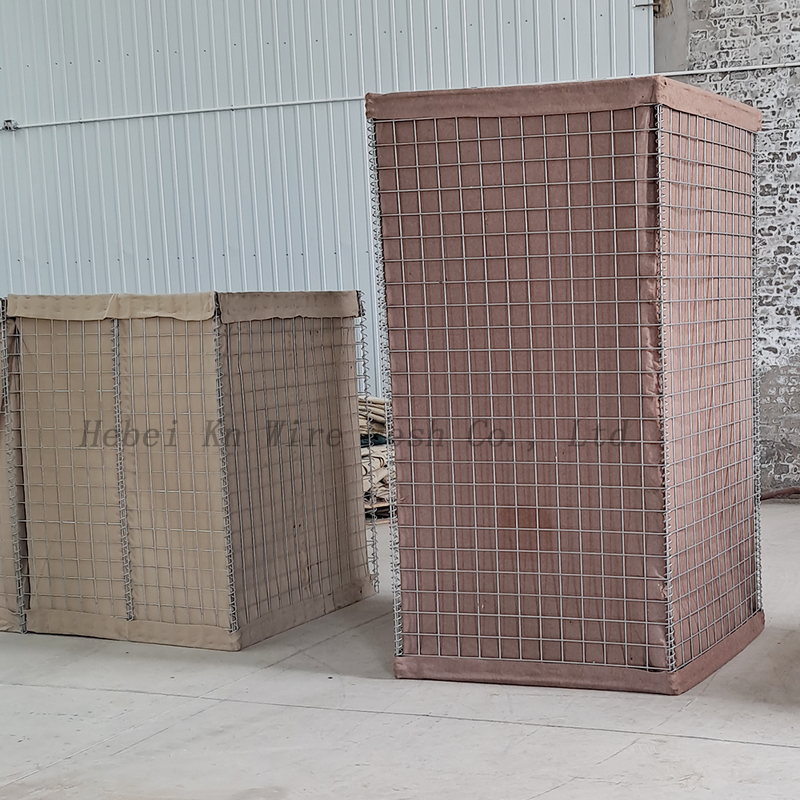

Defensive Barrier Sizes and Prices 1mx1mx1m safety barrier sand wall
Defensive Barrier Wall, also known as explosion-proof walls and flood-proof walls, are made of welded gabion nets and geotextiles, which are sewn and can hold fine sand, soil and stones can replace traditional bunker sandbags, and can be recycled. product. Different from traditional gabion nets (stone baskets), it can not only contain stones, but also finer sand. The filling materials are made on-site, which is especially suitable for use in the lower reaches of rivers or beaches where there is a lack of stone. With the help of advanced tools such as excavators and forklifts, the installation efficiency is dozens or even hundreds of times that of traditional sandbags.
It can be used as equipment and can be used for temporary bunkers, fortresses, and to replace traditional artificial trenches, effectively reducing personnel casualties.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Fortifications & Perimeter Security: Ideal for constructing temporary or permanent military bases, ammunition bunkers, forward operating bases (FOBs), and vehicle checkpoints to mitigate blast and ballistic threats.
Emergency Flood Control & Management: Rapidly deploys along riverbanks, coastlines, and urban areas to create robust flood walls, preventing heavy water ingress and controlling erosion.
Critical Infrastructure Protection: Safeguards power plants, government buildings, and transport hubs from natural disasters or security breaches.
Storm Surge & Coastal Defense: Acts as a heavy-duty barrier against rising tides and severe weather conditions.
Rapid Deployment & Easy Assembly: Delivered flat-packed on pallets, these barriers can be unfolded, positioned, and filled with sand, earth, or gravel in a fraction of the time it takes to build traditional sandbag walls.
Heavy-Duty Construction: Fabricated from high-tensile, hot-dipped galvanized steel wire mesh and reinforced with a heavy-duty, UV-resistant non-woven geotextile liner.
Modular & Flexible Design: The interlocking system allows you to connect multiple units seamlessly, creating a continuous, custom-shaped secure bastion wall to fit any terrain.
Multi-Hazard Protection: Proven to absorb explosive blasts, stop high-velocity projectiles, and withstand immense hydrostatic pressure during severe flooding events.
Sand Filled Barriers Features
Barrier wall characteristics
Easy to handle and install
High strength and impact resistance
Long life, normal use
It can be filled with sand, cement, stones, and soil.
Packaging:
The welded gabion mesh are collapsed when shipping.Usually in nude, or in pallet then wrapped with plastic film.Besides, customers' request are also available.
